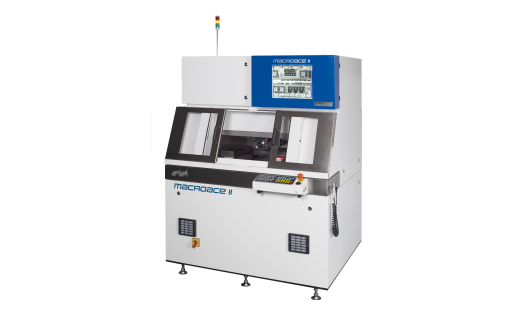

The MACROACE II is an evolution of the original MacroAce.
• 4kW spindle @ 10,000rpm makes MacroAceII easier and faster to cut thick and hard material.
• 60mm cut depth with 8inch blades.
• 4inch to 8inch capacity dicing blades.
• The footprint of the machine is quite small considering the machine capability.
| Application |
Metals,ceramics,rods,plates&profiles,PZT sonar arrays, Molybdenum grinding and profiling
|
||
|
Work-area |
|
Rotating | Can't rotate |
| H |
100mm |
100mm |
|
| L |
305mm |
420mm |
|
| W |
305mm |
305mm |
|
|
Blade |
100-200mm |
||
|
Chuck-type |
Ceramic or metal vacuum, tapeless jig, mechanical vice, magnetic vice
|
||
|
Spindle |
4kw 1000~10000rpm |
||
|
Z axis resolution |
0.0001 mm |
||
|
θ |
360°（Continue to rotate） |
||
